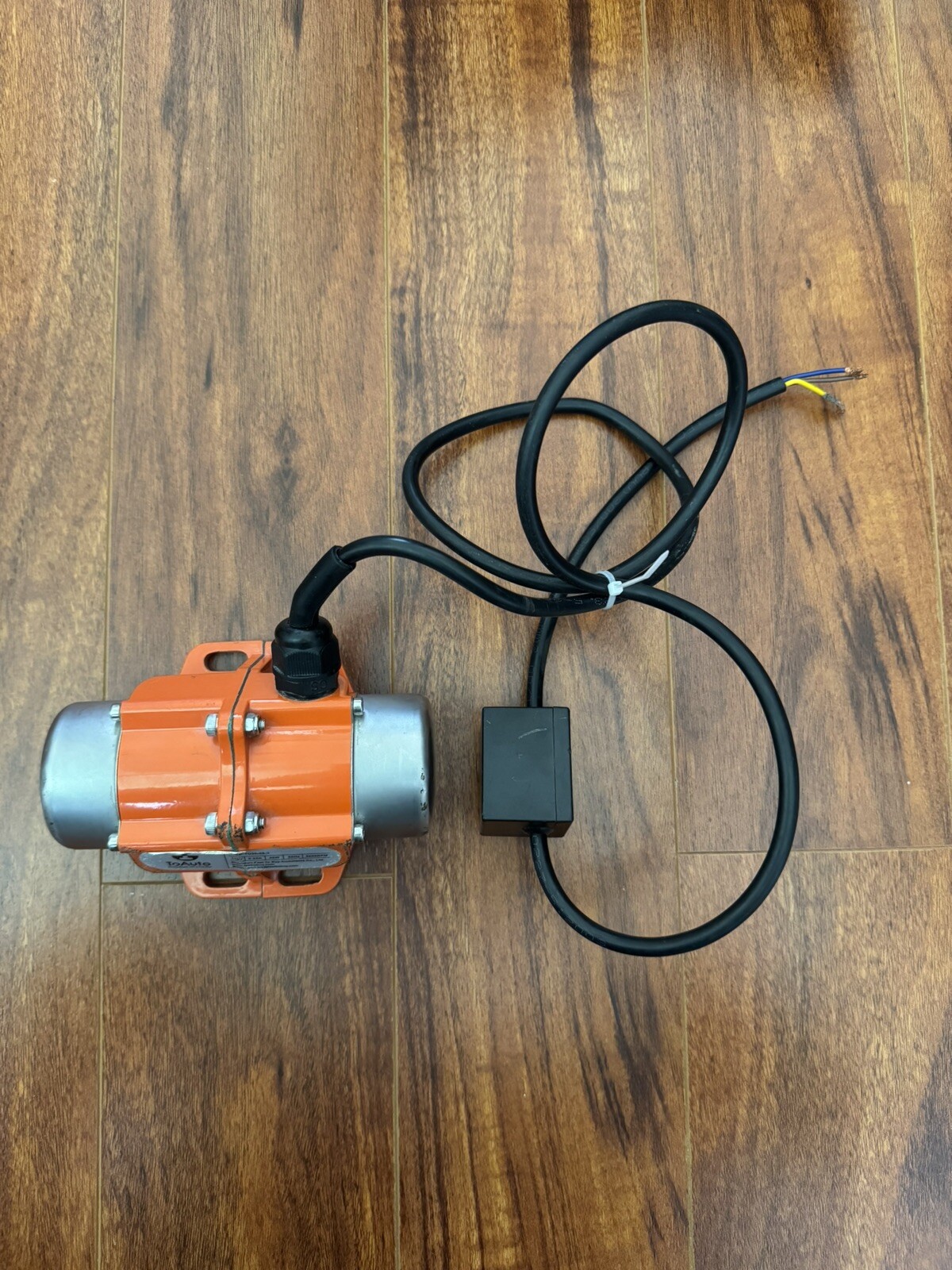

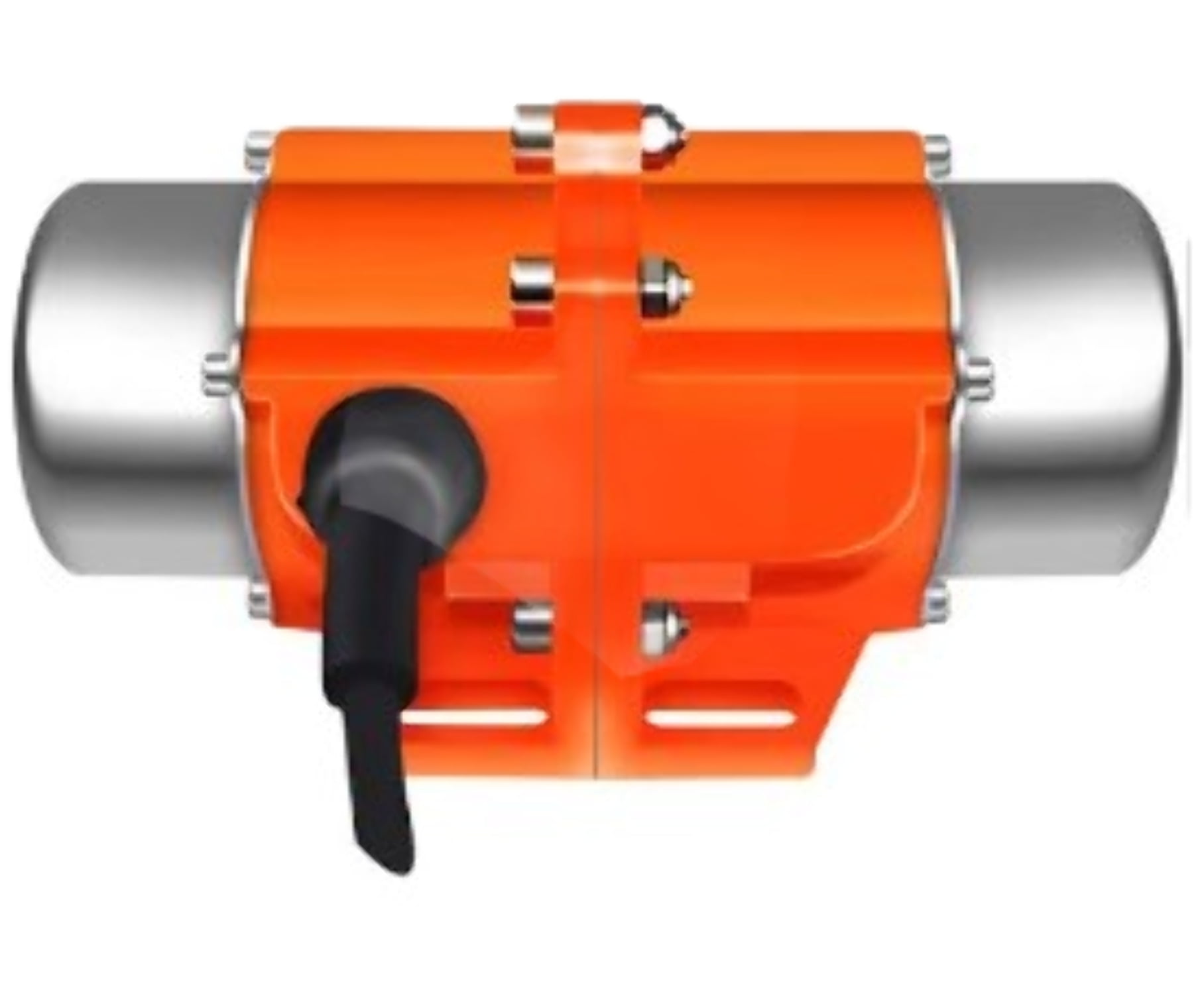

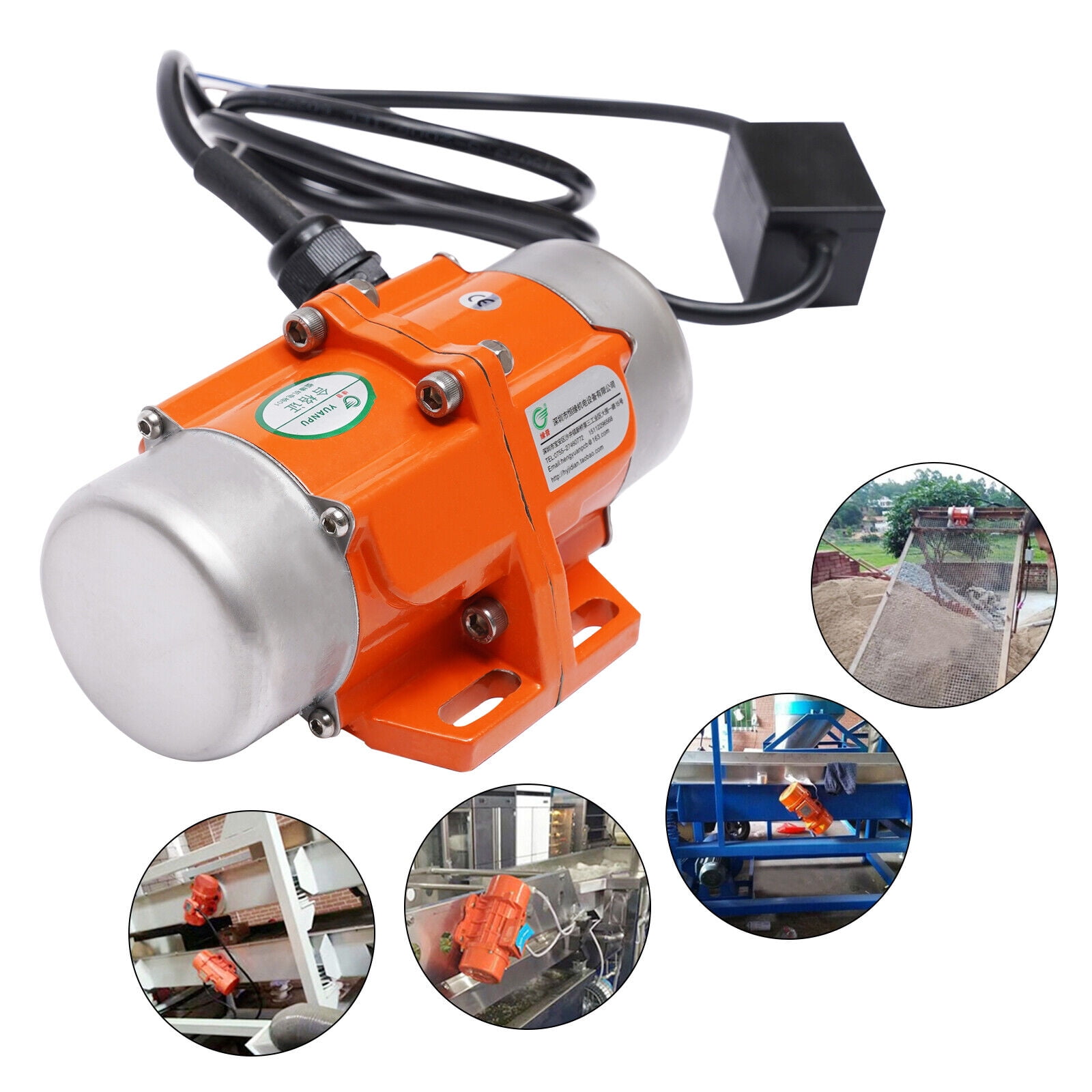

30W Concrete Vibrator Single Phase AC 110V 3600RPM

Description: ◆ The vibration motor with a fully enclosed structure design makes it has excellent sealing and IP65 waterproof rating, so it can keep stable operation even in a wet and dusty environment. ◆ The pure copper coil is resistant to 355℉ high-temperature to make it more durable and safe. ◆ The bearings made of high-strength deformation-resistant 45 steel, make the vibration motor run stably and efficiently. ◆ The rotor made of high-strength and impact-resistant cold-rolled steel, provides a high speed of 3600 rpm, greatly improve efficiency. ◆ The eccentric block angle of the motor can be adjusted to achieve stepless adjustment of vibration force to meet various requirements. Specifications: ◆ Name: Vibration Motor ◆ Model: HY-0.1-110N ◆ Materials: Aluminum Alloy Sealing Groove + 45 Steel Bearings + Cold-rolled Steel Rotor + Pure Copper Coil ◆ Color: Orange ◆ Phase: Single Phase ◆ Voltage: 110V 60Hz ◆ Power: 30W ◆ Current: 0.26A ◆ Rotational Speed: 3600 RPM ◆ Vibration Power: 44 lbs = 20 kg ◆ Waterproof Rating: IP65 ◆ Motor: Pure Copper Motor ◆ Coil Temperature Resistance: 355℉ = 180℃ ◆ Process: Painting Spray, Vacuum Dipping Paint ◆ Rotor Insulation Grade: F Grade ◆ Power Cord Diameter: 0.03'' ◆ Power Cord Length: 6.5 ft ◆ Product Size: 6'' x 4'' x 3'' ◆ Package Size: 8'' x 6'' x 4'' ◆ Product Weight: 3 lbs ◆ Shipping Weight: 4 lbs ◆ Package Includes: 1 x Vibrating Motor Note: ◆ When adjusting the eccentric block, please ensure that the two sides are symmetrical. ◆ After adjustment, the screws should be fixed tightly to prevent the screws from falling off during vibration. 【HIGH VIBRATING EFFICIENCY】The rotor made of high-strength and impact-resistant cold-rolled steel provides a 3600 rpm high speed. This vibration motor combines the power source and the vibration source into one with a large vibration force. High-quality aluminum alloy sealing groove is dustproof and waterproof to prevent ordinary low-pressure water spray. Thickened motor base can reduce the center of gravity and increases the contact area. 【WIDE APPLICATION】The small vibration motor can be widely used in various vibrating machinery such as a vibrating conveyor, vibrating feeder, vibrating ore drawer, etc. It is suitable for mining, metallurgy, coal, electric power, construction, chemical industry, medical supply, foundry, food, dusting machine, sieving powder, food machinery, and other fields.
