Super Basic MSGEQ7 7 Band Spectrum Analyzer Module Project! - Arduino Project Hub

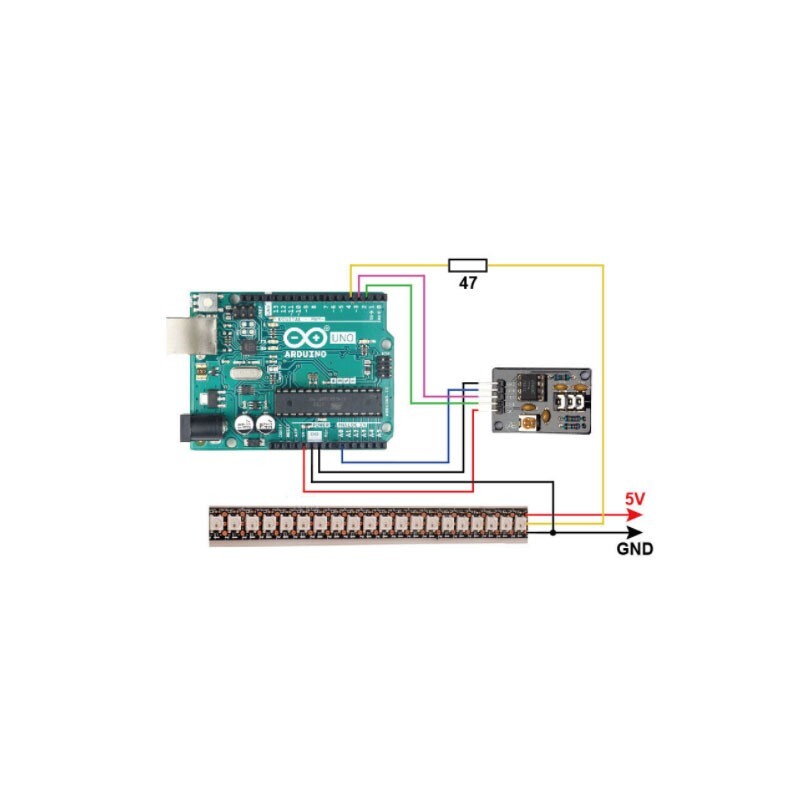

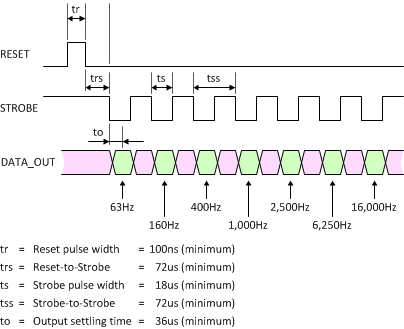

This is an MSGEQ7 spectrum analyzer breakout board. The MSGEQ7 can be used to analyze audio fed in through the stereo jack on the board. The data can be sent to an Arduino, Raspberry Pi, BeagleBone, or other microcontroller. This can be useful for timing lights to music. This gives a good representation of what is heard by your ears. The stereo version analyzes both channels separately using two onboard integrated circuits. The board measures 1.3 by 1.0 (33mm by 27mm). Timing lights to music is made simple with the seven peak-detected frequency bands multiplexed to the output. Pre-soldered connectors allow for easy, out-of-the-box use. The pins use a 0.1 pitch, making them breadboard-friendly. Quality control ensures that every board shipped meets our high standards and works as advertised. The board is designed and manufactured in California.
