Tuya Smart WiFi Energy Meter 80A Current Transformer Clamp KWh Power Monitor

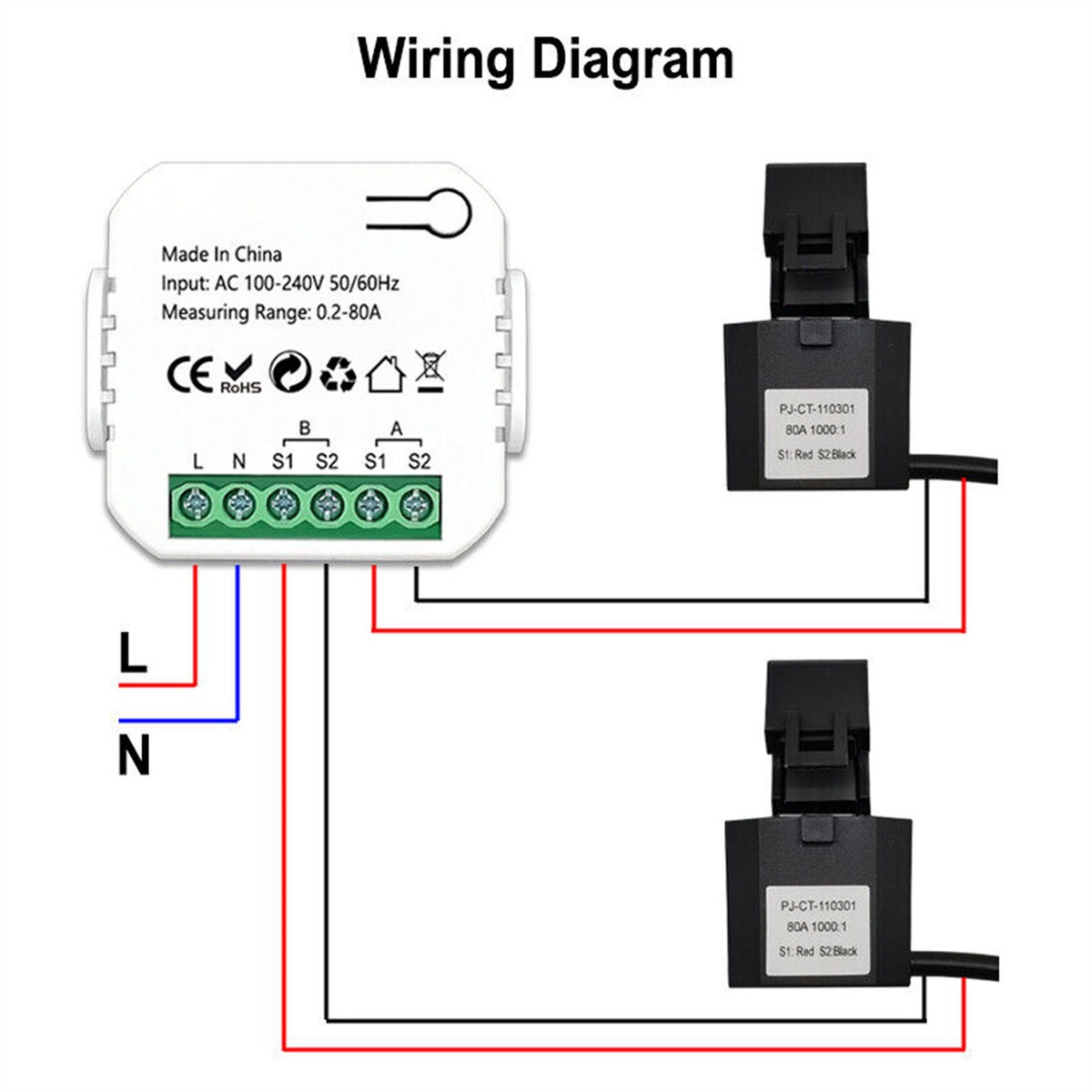

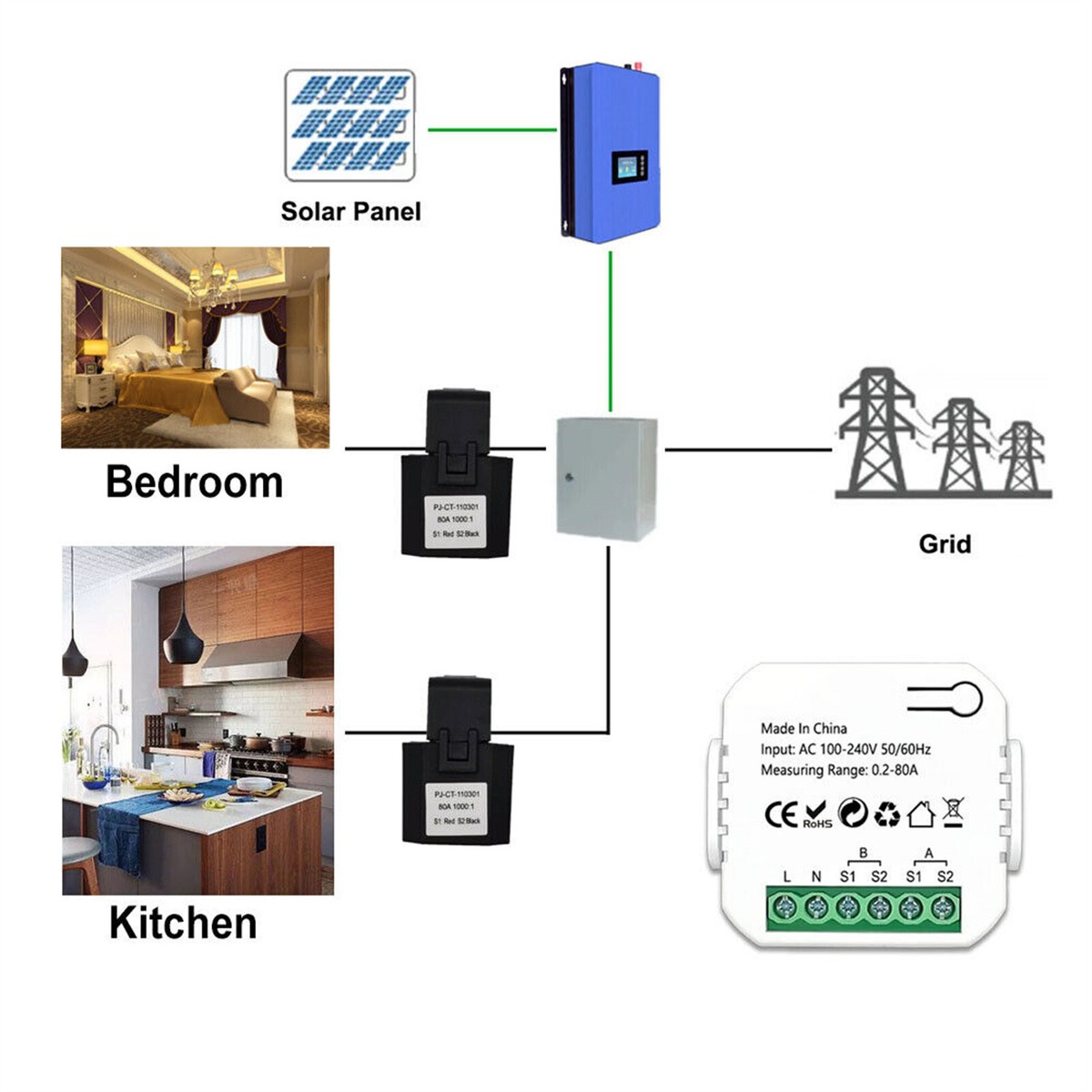

WiFi Smart Energy Meter,take command of your energy use. Data Tests For 80A-200A CT item, Real time monitor total current, power and KWh , and also show A, B, C each phase voltage , current, power and KWh consumptionelectric stastic , it can record hourly ,daily,monthly and yearly power consumped KWh value for Total and each phase separately. Installation Instruction The Power Clamp has a mounting bracket for mounting purposes. 1. Use the mounting bracket as template to mark the two holes on the wall for installing screws. 2. Screw the mounting bracket onto the wall according to marked location. Install wall plugs if necessary. 3. Locate the hooks of the mounting bracket and line up the hooks with the mounting holes on the Power Clamp. Installation is now completed. Then spinning the waterproof latch clockwise until both ends have been tightened and secured. Apply it on the electric meter cable. The arrow on the clamp should face to the correct direction of the electricity current flows (P1→P2or K→L). If the arrow faces the reverse direction, the reading meter will display 0. 1. Appliance Monitoring: Comes with 3PCS 80A CT Clamp Sensors to accurately monitor your air conditioner, furnace, water heater, washer, dryer etc. Support linkage with other devices in your Tuya App. 2. Energy Monitoring: Monitor your home's real power anywhere, anytime to prevent costly repairs, conserve energy, and save costs. Do not touch the terminals of the device during testing and turn off all the power supply for this equipment before installing. Be careful during installing. 6. Multi Channels Monitoring: The module can support monitoring max 3 wires(three phase power) together, but it can support monitoring only 1 wire or 2 wires(single phase power), the user can just install the Current CT Clamp on the wire he wants to monitor. 7. 80A CT Clamp Hole Diameter: 10MM 8. Module Power Supply: AC100-240V9. App: Smart Life App & Tuya App
